website(8,) CDA ECP92BL 90cm Curved Glass Extractor, Black, 3 Speed

10% OFF When you buy any 3 CDA appliances

CDA ECP102SS 100cm Curved Glass Extractor, Black, 3 Speed

WAS  £ 1.20
£ 0.96  Ex VAT
0.96 GBP Large Item

Availability: In Stock with Manufacturer

Terms and Conditions
30-day money-back guarantee
Shipping: 2-3 Business Days

Unit Detail

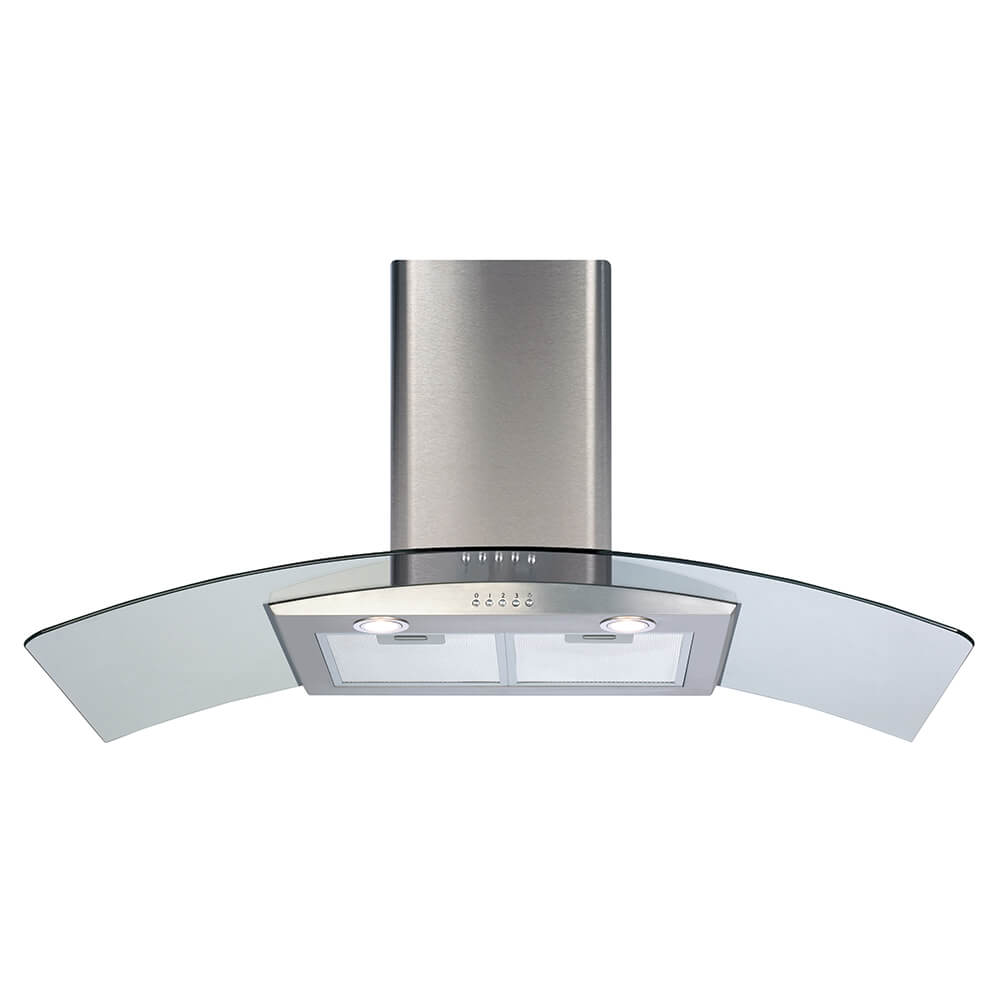

The CDA ECP102SS has a striking curved glass stainless steel design which is both chic and practical. The extractor has 3 speeds with push button control and built in LED lights to provide good illumination.

Features

  • Ducted/re-circulating installation
  • 3 speeds
  • Type of grease filter: Aluminium grease filters

Optional Accessories

  • Ducting kit code: 120mm, AED 51/53/54
  • Ducting kit code: 150mm, AED 61/63/64

Technical Specification

  • Required height over gas hobs: 700 mm (min)
  • Required height over electric hobs: 600 mm (min)
  • Power supply: 3 A
  • Mains lead length: 1 m
  • Mains lead rating: H05VV-F m
  • Protection class: Class I
  • Outlet diameter: 120mm/150mm mm
  • Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm

Extraction Rates And Noise

  • Extraction rate: 377 m3/hr
  • Noise level: 60 dBA
  • Extraction rate at first speed: 224 m³/hr
  • Extraction rate at second speed: 315 m³/hr
  • Extraction rate at third speed: 377 m³/hr
  • Noise level at first speed: 51 dBA
  • Noise level at second speed: 58 dBA
  • Noise level at third speed: 60 dBA

Filters

  • Charcoal filters: CHA12 (pack of 1)
  • Number of layers: 4
  • Number of grease filters: 2
  • Number of charcoal filters (optional): 1
  • Ducting kit: AED610/660 or AED510/560 with adaptor

Fitting Notes

  • Fitting note: please ensure that you check the ceiling heightis sufficient to allow the required clearance between the hob and extractor

Misc Information

  • WEEE Category: 01
